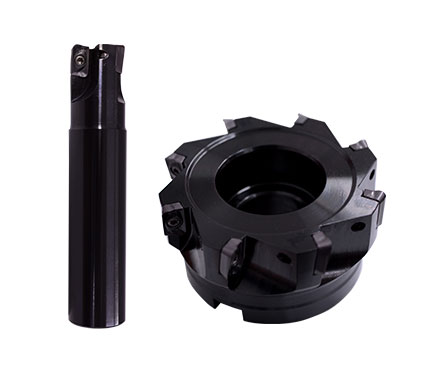

TAP90 Series

High precision cutting edge and low cutting forces for reduced chattering

Features

Features

●Suitable for 11°positive angle insert, applicable to alloy steel , hardened steel and aluminium alloy.

●Sharp cutting due to lower cutting forces.

●Reduced chattering even with extended milling adapters.

Inserts&Grade

Inserts&Grade

APKT1003/APKT1604

LEARN MORE

LEARN MORE

APKT1003/APKT1604-AK

LEARN MORE

Cutting bodies

Cutting bodies

Diameter:D50-D100mm

LEARN MORE

Diameter:D13-D32mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz（mm/t）
P	Low Carbon Steel	≤HB180	TY602	120-220	0.15-0.30
	High Carbon and Alloy Steel	HB180-280		70-150	0.15-0.30
	Alloy Steel	HB280-350		70-150	0.15-0.30
M	Stainless Steel	≤HB200		120-200	0.08-0.25
K	Gray Cast Iron	HB150-250		140-220	0.15-0.30
K	Ductile Cast Iron	HB150-250		150-240	0.15-0.30
N	Aluminum	—	HC200	300-800	0.07-0.50
H	Hardened Material	≤HRC55	TY622	40-80	0.26-0.40
