Tube Sheet

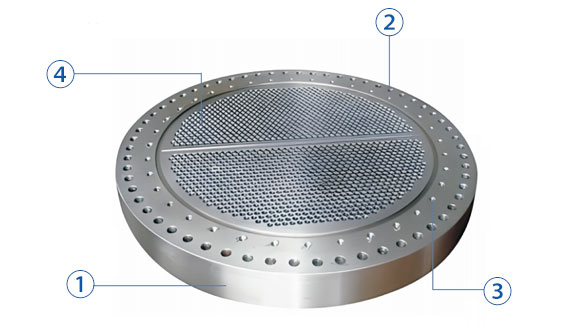

Tube sheet is a perforated plate component that fixes heat exchange
tubes and separates media.The accuracy of tube sheet processing,
especially the spacing between tube holes and diameter tolerances,
perpendicularity, and smoothness, greatly affect the assembly and
performance of the listed chemical equipment

Tube Sheet
1

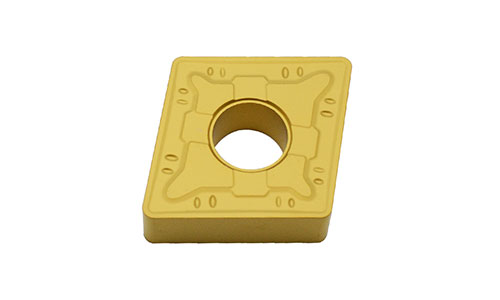

Turning of outer circle and end face

CNMG19-PR

Turning of outer circle and end face
Zoom in
2

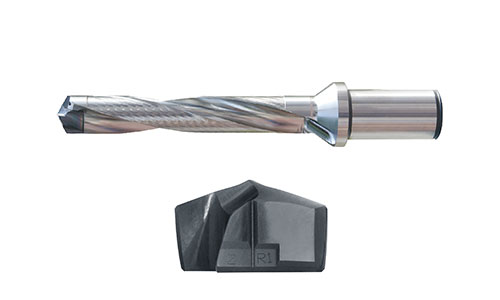

Flange hole processing

THCD Series

Flange hole processing
Zoom in
3

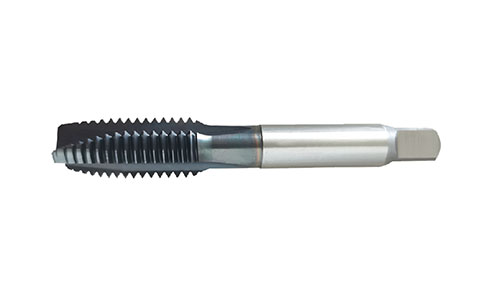

Flange hole processing

TAD-TAPS Series

Flange hole processing
Zoom in
4

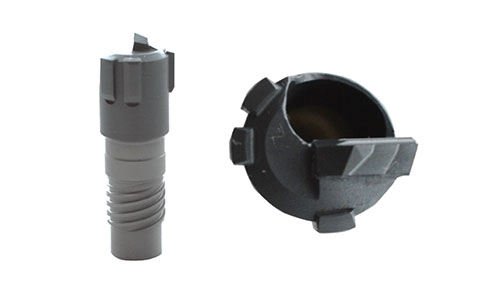

Tube hole processing

BTA Series

Tube hole processing
Zoom in
