> Products > Milling > Indexable Milling Cutters > Shoulder Milling
TWN90 Series
4 Cutting-edge double-sided insert for high-feed machining
Features
Features

●Sharp cutting due to lower cutting forces.



●Reduced chattering even with extended milling adapters.



●Superior fracture resistance with thick edge design.

Inserts&Grade
Inserts&Grade
WNMU0806-CR
P
M
K
Grade: TY602
APMX: 6.5mm

LEARN MORE
WNMU0806-UR
P
M
K
Grade: TY610(P、M)
Grade: TY620(K)
APMX: 6.5mm

LEARN MORE
Cutting bodies
Cutting bodies

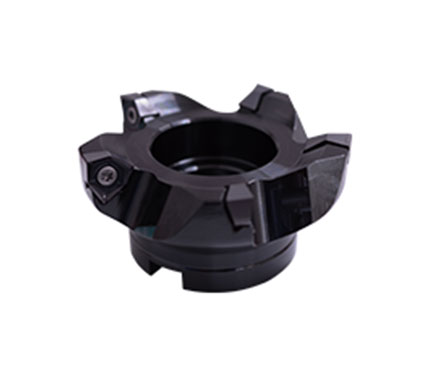

TWN90
Diameter:D63-D160mm
APMX: 6.5mm

LEARN MORE
Standard cutting conditions
Standard cutting conditions

ISO

Workpiece material

Hardness

Crade

Cutting Speed

Feed

Vc （m/min）

fz（mm/t）

P

Carbon Steel

≤HB300

TY602/TY610

120-250

0.05-0.15

Alloy Steel

HB200-300

TY602/TY610

100-220

0.05-0.10

Mold Steel

≤HB300

TY602/TY610

80-180

0.05-0.10

M

Stainless Steel

≤HB200

TY602/TY610

80-150

0.10-0.25

K

Gray Cast Iron

HB150-250

TY620

120-250

0.10-0.20

Ductile Cast Iron

HB150-250

TY620

100-200

0.05-0.15
