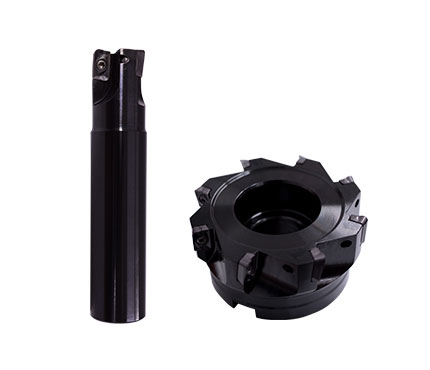

TAN90 Series

4 Cutting-edge double-sided insert for high-feed machining

Features

Features

●Double sided insert with 4 sharp and tough cutting edges.

●Available in 3 sizes and wiper edge for excellent surface finish.

●Low cutting force due to large rake angle.

●Positive rake face for smooth machining and reduced vibration.

●Highly rigid cutter body.

Inserts&Grade

Inserts&Grade

APMX: 8/12/16.3mm

LEARN MORE

Cutting bodies

Cutting bodies

Diameter:D16-D40mm
APMX: 8/12mm

LEARN MORE

Diameter:D50-D160mm
APMX: 16.3mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz（mm/t）
P	Low Carbon Steel	≤HB180	TY625	120-180	0.05-0.15
	High Carbon and Alloy Steel	HB200-300	TY625	100-160	0.05-0.10
	Mold Steel	≤HB300	TY625	80-120	0.05-0.10
M	Stainless Steel	≤HB200	TY625	80-100	0.10-0.25
K	Gray Cast Iron	HB150-250	TY625	150-200	0.10-0.20
K	Ductile Cast Iron	HB150-250	TY625	120-150	0.05-0.15
