TOTIME3839 Series

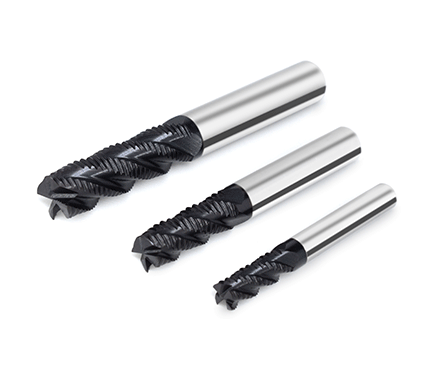

Variable Lead Roughing Carbide End Mill for General Steels, Cast Irons

Features

●Suitable for rough machining of ordinary steel and cast iron materials (≤48HRC) with large cutting depth and large cutting width, with high metal removal rate.

●The design of dense teeth and wave teeth with unequal helix angle produces ultra-fine short chips during processing, acheives excellent chip removal performance, low cutting resistance and low machine load.

●Special edge treatment, effectively improve chipping resistance and wear resistance in the roughing process.

Shape type

Square

Diameter:6-20mm
Nunber of flutes: 4

LEARN MORE

Side Milling

Carbide End Mill Cutter(HRC 35-55)

4 Flutes Square End Mill / 4 Flutes Corner Radius End Mill For Carbon Steels, Alloy Steels, Stainless Steels-Side Milling

Workpiece Material		Cutting Depth (mm)	Vc m/min	Tool Diameter (mm)	6	8	10	12	16	20
P	Carbon Steels Alloy Steels (HRC≤35)	ap ≤ 1.5D	90	Rotation Speed （ min - 1）	4770	3580	2860	2390	1790	1430
	Carbon Steels Alloy Steels (HRC≤35)	ae ≤ 0.3D	90	Feed Speed （mm/min）	400	610	620	560	540	500
	Hardened Steels (35 - 48HRC)	ap ≤ 1.5D	80	Rotation Speed （ min - 1）	4240	3180	2550	2120	1590	1270
	Hardened Steels (35 - 48HRC)	ae ≤ 0.3D	80	Feed Speed （mm/min）	330	510	510	460	450	420
	Hardened Steels (48-55HRC)	ap ≤ 1.5D	65	Rotation Speed （ min - 1）	3445	2580	2070	1720	1290	1160
	Hardened Steels (48-55HRC)	ae ≤ 0.3D	65	Feed Speed （mm/min）	264	408	408	368	360	336
M	Stainless Steels	ap ≤ 1.5D	70	Rotation Speed （ min - 1）	3710	2790	2230	1860	1390	1110
M	Stainless Steels	ae ≤ 0.3D	70	Feed Speed （mm/min）	290	450	450	410	390	360
