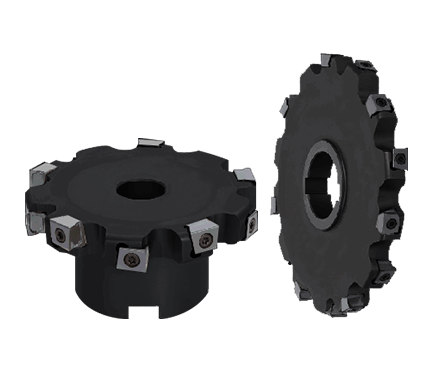

TLXFD/SD Series

Improved surface finishi in slotting and back-face milling

Features

Features

●An economical slot milling solution with stable chip formation allowing deeper slotsthus increasing productivity and stability in machining.

●4 corners available with grade gedge .

●High productivity due to a large number of edge linessmall gap between redge and ledge

Inserts&Grade

Inserts&Grade

Grade: TT650(P、M)

Grade: TY720(K)

Grade: TS820(S)

LEARN MORE

Cutting bodies

Cutting bodies

Diameter:D100-D200mm
CW: 16/19/25mm
APMX: 20-55mm

LEARN MORE

Diameter:D100-D200mm
CW: 16/19/25mm
APMX: 25.5-64.5mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz(mm/t)
P	Low Carbon Steel	≤HB180	TT650	90-180	0.13-0.40
	High Carbon and Alloy Steel	HB180-280		90-180	0.13-0.40
	Alloy Steel	HB280-350		90-180	0.13-0.40
M	Stainless Steel	≤HB200		90-200	0.13-0.40
K	Gray Cast Iron	HB150-250	TY720	100-200	0.10-0.25
K	Ductile Cast Iron	HB150-250	TY720	80-150	0.10-0.20
S	Superalloys	-	TS820	20-35	0.07-0.16
