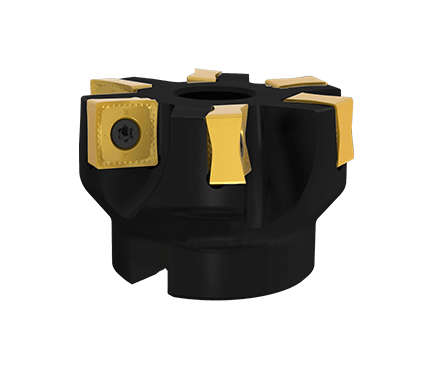

TSN90 Series

8 Double-Side cutting edge and low cutting forces for reduced chattering and superior fracture resistance Diameter:D50-D125mm APMX: 6.7/10mm

Features

●The insert is double-sided eight cuting edge type,which is economical.The large front angle of the insert is designed to cut easily.

●There are M and ML grooves to meet the processing requirements under different working conditions

Inserts&Grade

LEARN MORE

LEARN MORE

Cutting bodies

LEARN MORE

Standard cutting conditions

ISO	Workpiece material	Hardness	Priority		Cutting Speed	Feed
ISO	Workpiece material	Hardness	Chipbreaker	Grade	Vc （m/min）	fz（mm/t）
P	Low Carbon Steel	≤HB180	M	TE620	180-300	0.10-0.20
	High Carbon and Alloy Steel	HB180-280	M		130-210	0.10-0.20
	Alloy Steel	HB280-350	M		100-180	0.10-0.20
M	Stainless Steel	≤HB200	M		120-300	0.10-0.20
K	Gray Cast Iron	HB150-250	M	TY720	100-280	0.13-0.25
K	Ductile Cast Iron	HB150-250	M	TY720	100-180	0.13-0.25
S	Ni-base Heat Resistant Alloy Titanium Alloy	—	ML	TS320	30-80	0.10-0.20
S	Ni-base Heat Resistant Alloy Titanium Alloy	—	ML	TS320	35-90	0.10-0.20
