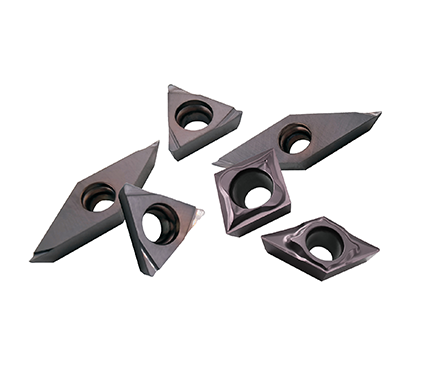

TJ15/TJ20U

Coated：PVD (first grades） Workpiece material：steel、stainless steel

Features & Grades

Features

1A generation of PVD first grades for steel、stainless steel finishing turning.

2.Excellent wear resistance and excellent fracture resistance to further improve your machining efficiency.

Grades

P10-P20 M10– M20

G class inserts

High wear resistance

First choice for steel、stainless steel precision finishing turning

LEARN MORE

P10-P20 M10– M20

G class inserts

High wear resistance

First choice for steel、stainless steel medium to finishing turning

LEARN MORE

Chipbreakers

Chipbreakers

Chipbreaker	Features	Application	Cuting Edge
15M	Shallow depth of cut with sharp edge. Longer tool life at high speed cutting due to low cutting force. Good finishing surface.
15V	Longer tool life due to minimizing chip contact and reducing cutting heat while machining.
25UL	High positive cutting edge reduces chip contact. Minimized temperature while machining ensures longer tool life. Stable machining with superior chip evacuation in high depth of cut.
10U/12U/13U/15U	Improved chip control makes tool life longer and better machining.
14K	Good chip control at finishing to light machining with low cutting force
15K	Excellent chip control in application with micro depth of cut and low feed. Low cutting load and super finishing surface. Excellent for both internal and extemal machining
14VI	Longer tool life due to minimizing chipcontact and reducing cutting heat whilemachining.
PY	Great combination of sharpness and toughness.Excellent chip control.
PC	Sharpest molded chipbreaker. Excellent chip control. Less tool pressure.

Standard Cutting Conditions

Positive inserts

ISO	Operation	Chipbreaker	Grade	ap(mm)	f(mm/rev)	Vc(m/min)
P	Precision finishing	PC	TJ15	0.10-0.30	0.03-0.05	100-180
		PY	TJ15	0.10-0.30	0.03-0.05	100-180
		15V	TJ15	0.05-0.20	0.01-0.10	100-180
		15M	TJ15	0.05-0.20	0.01-0.10	100-180
		14K/15K	TJ15	0.05-0.20	0.01-0.10	100-180
		25UL	TJ15	0.05-0.20	0.01-0.10	100-180
		10U/12U/13U/15U	TJ15	0.05-0.20	0.01-0.10	100-180
	Finishing	PC	TJ20U	0.30-2.00	0.10-0.15	100-150
		PY	TJ20U	0.30-2.00	0.10-0.15	100-150
		15V	TJ20U	0.05-2.00	0.10-0.30	100-150
		15M	TJ20U	0.05-2.00	0.10-0.30	100-150
		14VI	TJ20U	0.05-2.00	0.10-0.30	100-150
		14K/15K	TJ20U	0.05-2.00	0.10-0.30	100-150
		25UL	TJ20U	0.05-2.00	0.10-0.30	100-150
		10U/12U/13U/15U	TJ20U	0.05-2.00	0.10-0.30	100-150
	Medium cutting	15V	TJ20U	0.20-2.50	0.10-0.30	100-150
		14VI	TJ20U	0.20-2.50	0.10-0.30	100-150
		14K/15K	TJ20U	0.20-2.50	0.10-0.30	100-150

ISO	Operation	Chipbreaker	Grade	ap(mm)	f(mm/rev)	Vc(m/min)
M	Precision finishing	PC	TJ15	0.05-0.20	0.01-0.10	50-180
		PY	TJ15	0.05-0.20	0.01-0.10	50-180
		15V	TJ15	0.05-0.20	0.01-0.10	50-180
		15M	TJ15	0.05-0.20	0.01-0.10	50-180
		14K/15K	TJ15	0.05-0.20	0.01-0.10	50-180
		25UL	TJ15	0.05-0.20	0.01-0.10	50-180
		10U/12U/13U/15U	TJ15	0.05-0.20	0.01-0.10	50-180
	Finishing	PC	TJ20U	0.05-2.00	0.10-0.30	50-150
		PY	TJ20U	0.05-2.00	0.10-0.30	50-150
		15V	TJ20U	0.05-2.00	0.10-0.30	50-150
		15M	TJ20U	0.05-2.00	0.10-0.30	50-150
		14VI	TJ20U	0.05-2.00	0.10-0.30	50-150
		14K/15K	TJ20U	0.05-2.00	0.10-0.30	50-150
		25UL	TJ20U	0.05-2.00	0.10-0.30	50-150
		10U/12U/13U/15U	TJ20U	0.05-2.00	0.10-0.30	50-150
	Medium cutting	15V	TJ20U	0.20-2.50	0.10-0.30	50-150
		14VI	TJ20U	0.20-2.50	0.10-0.30	50-150
		14K/15K	TJ20U	0.20-2.50	0.10-0.30	50-150

Practical cases

Workingpiece Type:	Wing nut
Work Material:	SUS440
Inserts:	CCGT060201R-13U
Grade:	TJ15
Cutting Conditions:	VC=110(m/min)
	f=0. 1 (mm/rev )
	ap=0.5(mm)
	Cooling From: Wet

Workingpiece Type:	Handle
Work Material:	SUS316
Inserts:	VCGT110302R-12U
Grade:	TJ20U
Cutting Conditions:	VC=180(m/min)
	f=0. 15 (mm/rev )
	ap=0.5(mm)
	Cooling From: Wet

E-Catalog-Turning

E-Catalog-Turning

Click to enter E-Catalog Turning

LEARN MORE
