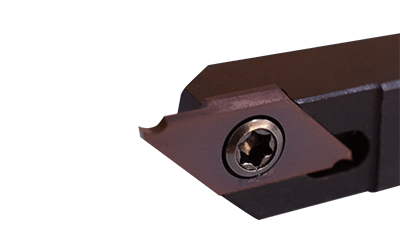

Home > E-Catalog > Parting,Grooving > TTF Series > Toolholders
> KTKFR/L
Parting,Grooving
Main Application
Related Insert Related Tool

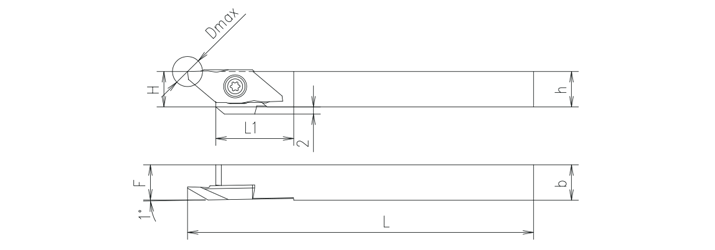

Product No.
Designation
h
b
H
F
L
Dmax
L1
Wrench
Screw
Hand
Insert type
T2408001 KTKFR1010K-12 10.0 10.0 10.0 10.0 125.0 12.0 15.0 T15 L60M410 R TTF12R050-S-TG1225
T2408002 KTKFR1212K-12 12.0 12.0 12.0 12.0 125.0 12.0 - T15 L60M410 R TTF12R050-S-TG1225
T2408003 KTKFR1212M-12 12.0 12.0 12.0 12.0 150.0 12.0 - T15 L60M410 R TTF12R050-S-TG1225
T2408004 KTKFR1616M-12 16.0 16.0 16.0 16.0 150.0 12.0 - T15 L60M410 R TTF12R050-S-TG1225
T2408005 KTKFR2020M-12 20.0 20.0 20.0 20.0 150.0 12.0 - T15 L60M410 R TTF12R050-S-TG1225
T2408006 KTKFR2525M-12 25.0 25.0 25.0 25.0 150.0 12.0 - T15 L60M410 R TTF12R050-S-TG1225
T2408007 KTKFR1010K-16 10.0 10.0 10.0 10.0 125.0 16.0 20.0 T15 L60M410 R TTF16R100-S-TG1225
T2408008 KTKFR1212K-16 12.0 12.0 12.0 12.0 125.0 16.0 - T15 L60M410 R TTF16R100-S-TG1225
T2408009 KTKFR1212M-16 12.0 12.0 12.0 12.0 150.0 16.0 - T15 L60M410 R TTF16R100-S-TG1225
T2408010 KTKFR1616M-16 16.0 16.0 16.0 16.0 150.0 16.0 - T15 L60M410 R TTF16R100-S-TG1225
T2408011 KTKFR2020M-16 20.0 20.0 20.0 20.0 150.0 16.0 - T15 L60M410 R TTF16R100-S-TG1225
T2408012 KTKFR2525M-16 25.0 25.0 25.0 25.0 150.0 16.0 - T15 L60M410 R TTF16R100-S-TG1225
T2408013 KTKFL1010K-12 10.0 10.0 10.0 10.0 125.0 12.0 15.0 T15 L60M410 L TTF12L050-S-TG1225
T2408014 KTKFL1212K-12 12.0 12.0 12.0 12.0 125.0 12.0 - T15 L60M410 L TTF12L050-S-TG1225
T2408015 KTKFL1212M-12 12.0 12.0 12.0 12.0 150.0 12.0 - T15 L60M410 L TTF12L050-S-TG1225
T2408016 KTKFL1616M-12 16.0 16.0 16.0 16.0 150.0 12.0 - T15 L60M410 L TTF12L050-S-TG1225
T2408017 KTKFL2020M-12 20.0 20.0 20.0 20.0 150.0 12.0 - T15 L60M410 L TTF12L050-S-TG1225
T2408018 KTKFL2525M-12 25.0 25.0 25.0 25.0 150.0 12.0 - T15 L60M410 L TTF12L050-S-TG1225
T2408019 KTKFL1010K-16 10.0 10.0 10.0 10.0 125.0 16.0 20.0 T15 L60M410 L TTF16L100-S-TG1225
T2408020 KTKFL1212K-16 12.0 12.0 12.0 12.0 125.0 16.0 - T15 L60M410 L TTF16L100-S-TG1225
T2408021 KTKFL1212M-16 12.0 12.0 12.0 12.0 150.0 16.0 - T15 L60M410 L TTF16L100-S-TG1225
T2408022 KTKFL1616M-16 16.0 16.0 16.0 16.0 150.0 16.0 - T15 L60M410 L TTF16L100-S-TG1225
T2408023 KTKFL2020M-16 20.0 20.0 20.0 20.0 150.0 16.0 - T15 L60M410 L TTF16L100-S-TG1225
T2408024 KTKFL2525M-16 25.0 25.0 25.0 25.0 150.0 16.0 - T15 L60M410 L TTF16L100-S-TG1225
