| Chipbreaker | Features | Application | Cutting Edge |
| FM |
Suitable for finishing to medium cutting. Excellent chip control. |
 |
 |
Negative inserts

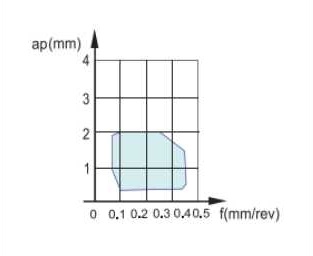

| ISO | Operation | Chipbreaker | Grade | ap(mm) | f(mm/rev) | Vc(m/min) |
| P | Medium cutting | FM | TP7110 | 0.5-3.0 | 0.10-0.40 | 150-360 |
| TP7220 | 120-280 |
|
Workingpiece Type |

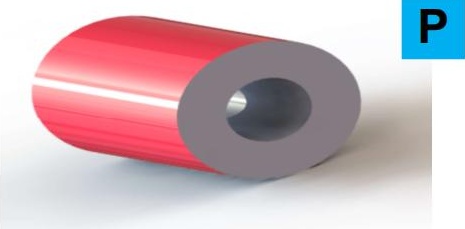

Pipe |
 |
|
Work Material |
SCM23 |
|
|
Inserts |
CNMG120408-FM |
|
|
Grade |
TP7110 |
|
|
Cutting Conditions |
VC=130(m/min) |
 |
|
f=0.03-0.05(mm/rev) |
||
|
ap=3(mm) |
||
|
Cooling From: Wet |
|
Workingpiece Type |

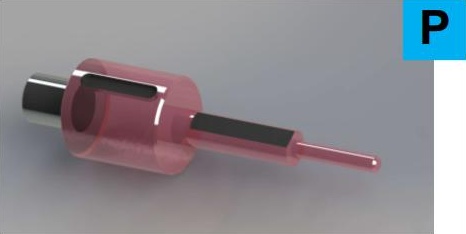

Shaft |
 |
|
Work Material |
SUM24L |
|
|
Inserts |
TNMG160408-FM |
|
|
Grade |
TP7220 |
|
|
Cutting Conditions |
VC=120(m/min) |
 |
|
f=0.1(mm/rev) |
||
|
ap=1.2(mm) |
||
|
Cooling From: Wet |
